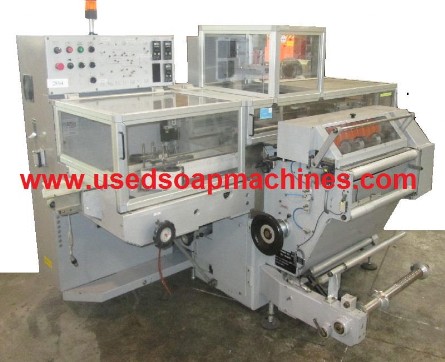

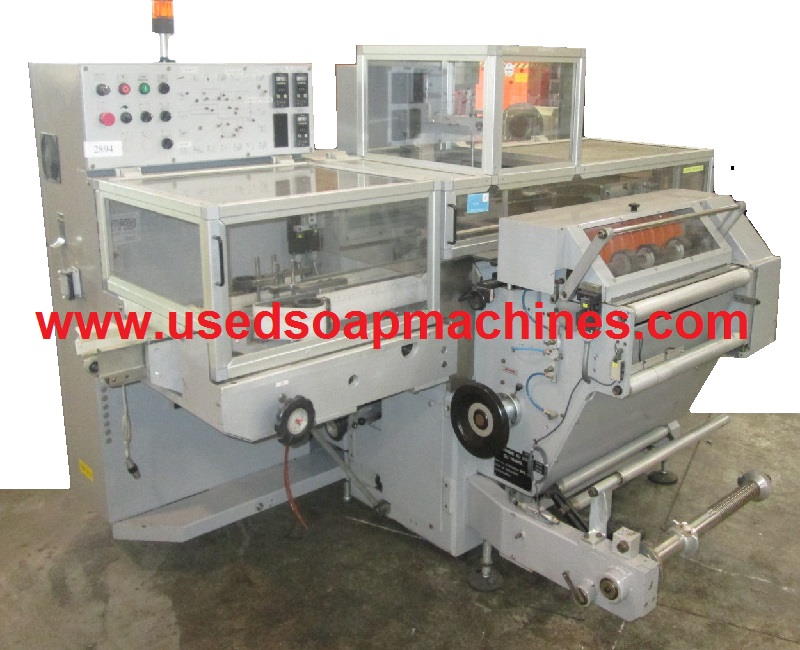

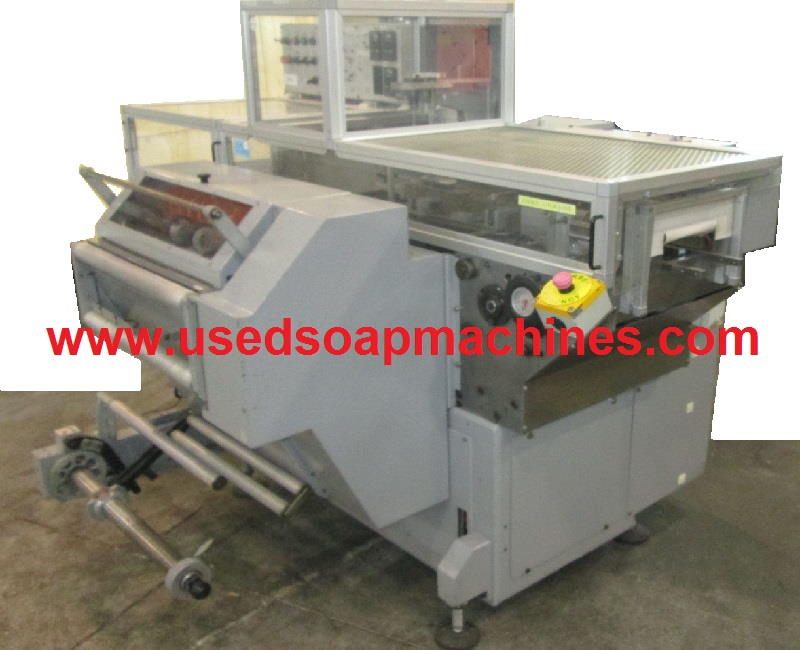

OVERWRAPPER "BFB 3701"
The IMA BFB 3701 is a soap bundler for cartoned soaps and paper-wrapped soaps. the wrapping materials is heat-sealable film: polypropylene, polyethylene, etc. Speed is up to 70 bundles per minute of 3 cartoned or wrapped soap bars.
The production speed depends on the specification and quality of the wrapping material and product to be wrapped.
The bundling machine IMA BFB 3701 is complete with:
- Infeed belt conveyor in-line with the outlet
- Elevator plate to lift up the required number of soaps.
- Bundle pusher
- Reel-holders at 90° compared with the product flow.
- Sealing station for the longitudinal seal
- Folding section
- Side heating elements for the double-point end folds
- Outlet movable side sealing plates
- Operator guards with safety interlocks
SPECIFICATIONS
- Soap Wrapping speed: up to 70 multipacks per minute
- Length range: from 55 to 225 mm
- Width range: from 40 to 125 mm
- Thickness range: from 25 to 90 mm
