RECONDITIONED SOAP FINISHING LINE FOR SALE
CAPACITY: 1,200 Kg/hour:

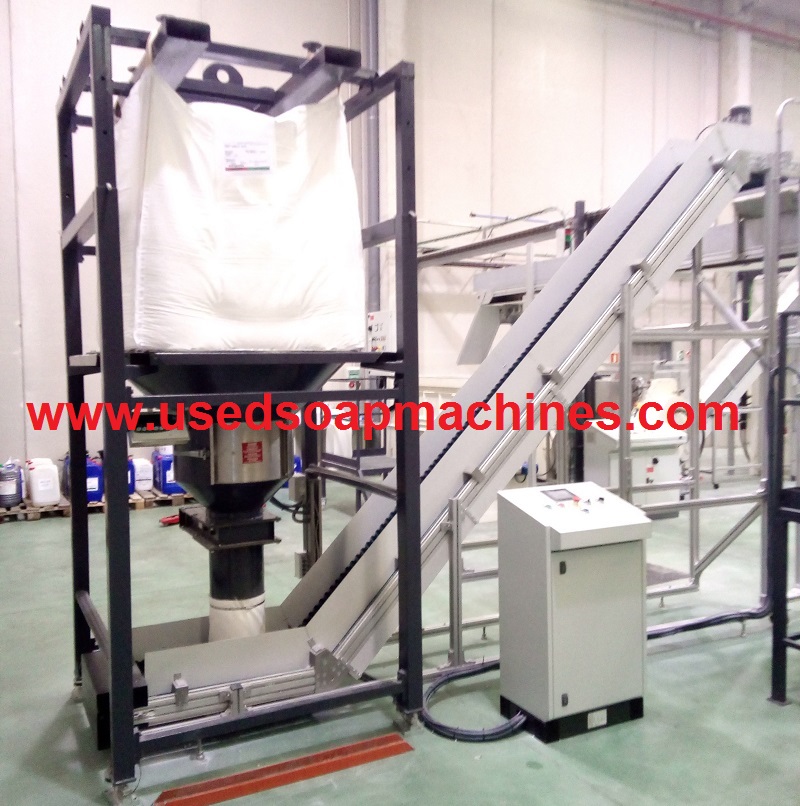

A. UNLOADING SYSTEM FOR 1 TON BIG BAG
- Assembled on load cells
B. ELEVATING BELT CONVEYOR

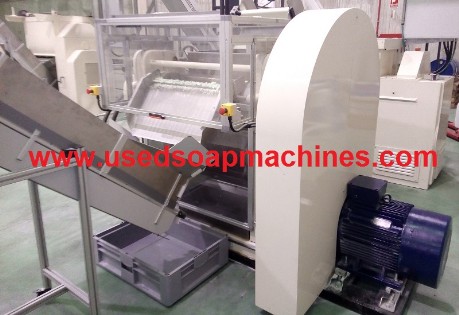

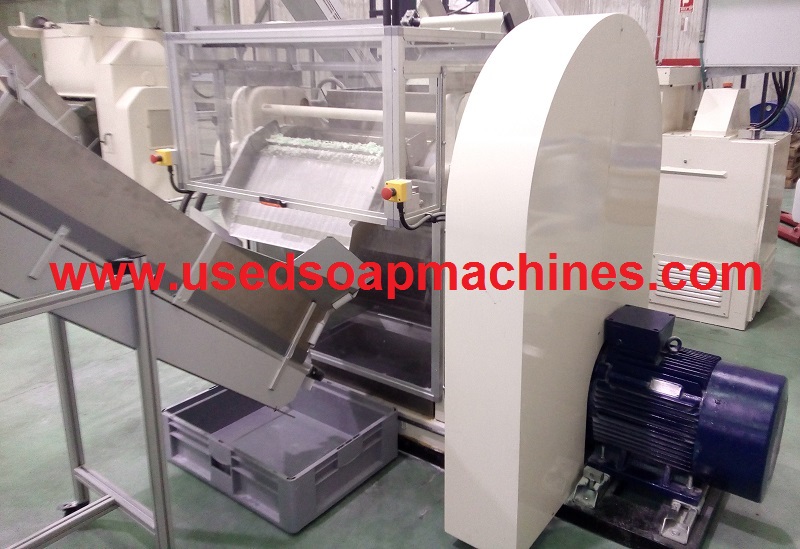

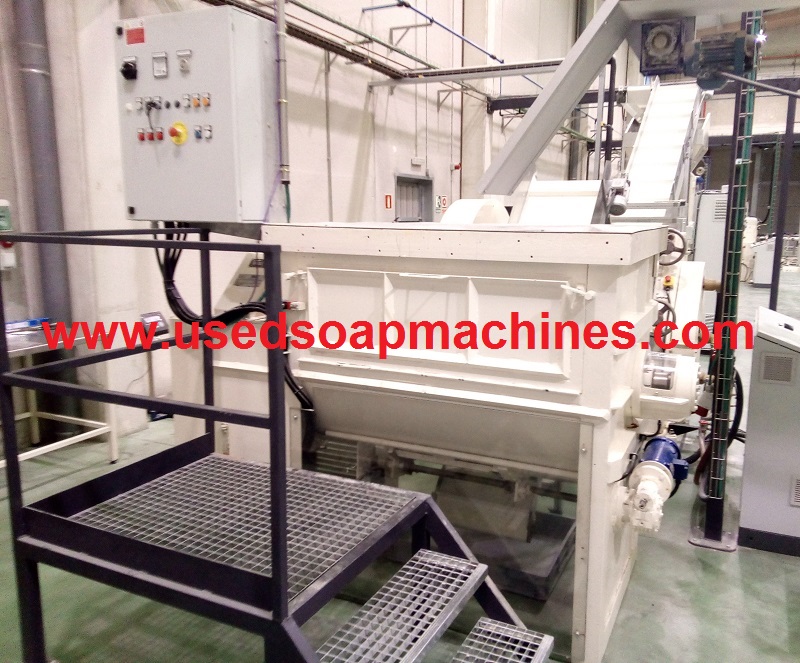

C. AMALGAMATOR “MAZZONI
- Parts in contact with soap made in Stainless steel
- Batch Capacity: 400 Kg of soap pellets
- Trough volume: 1000 liters
- Installed power: 18,5 kW
D. ELEVATING BELT CONVEYOR

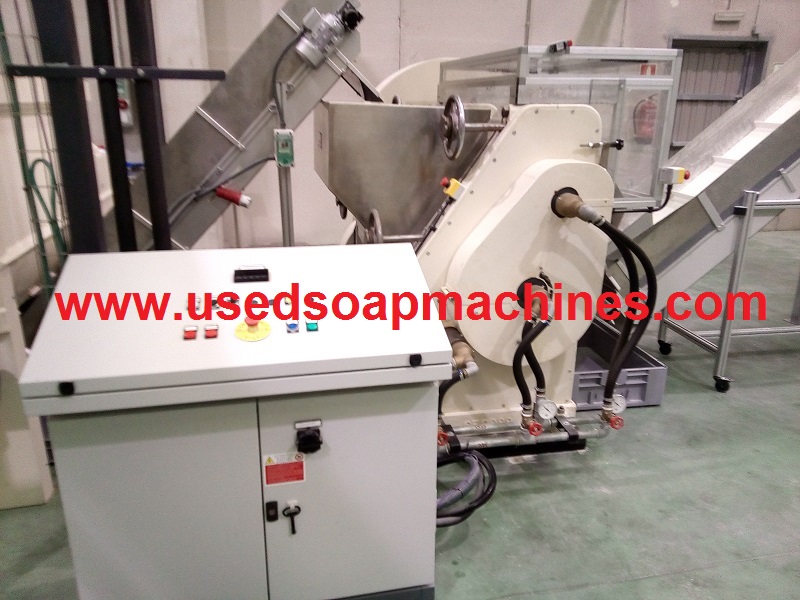

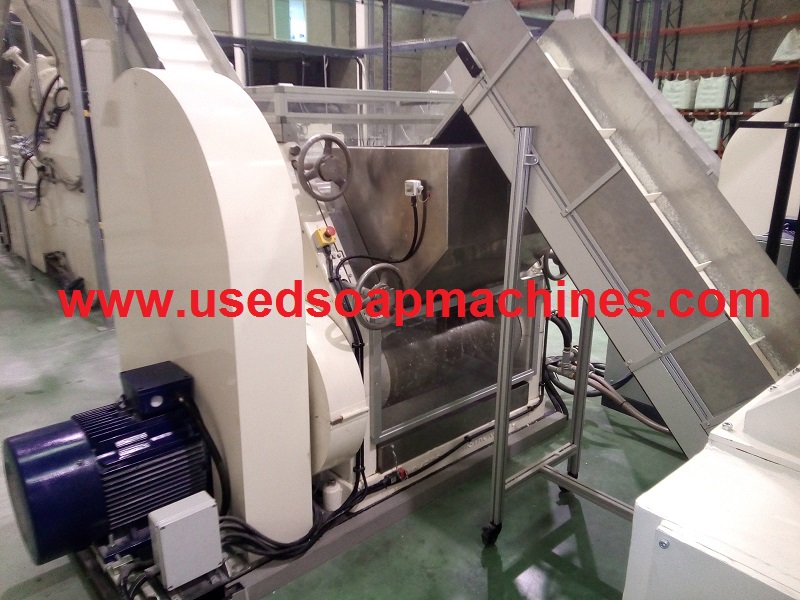

E. VICKERS 3 ROLL-MILL
- Capacity: 1200 Kg/h
- Diameter of the 3 rolls: 390 mm
- Length of the 3 rolls: 810 mm
- Installed power: 22 kW
F. ELEVATING BELT CONVEYOR

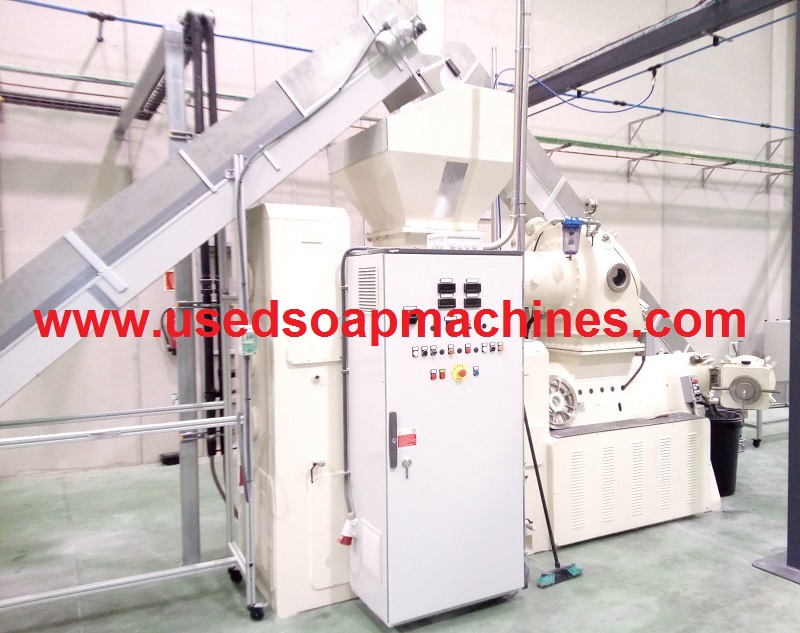

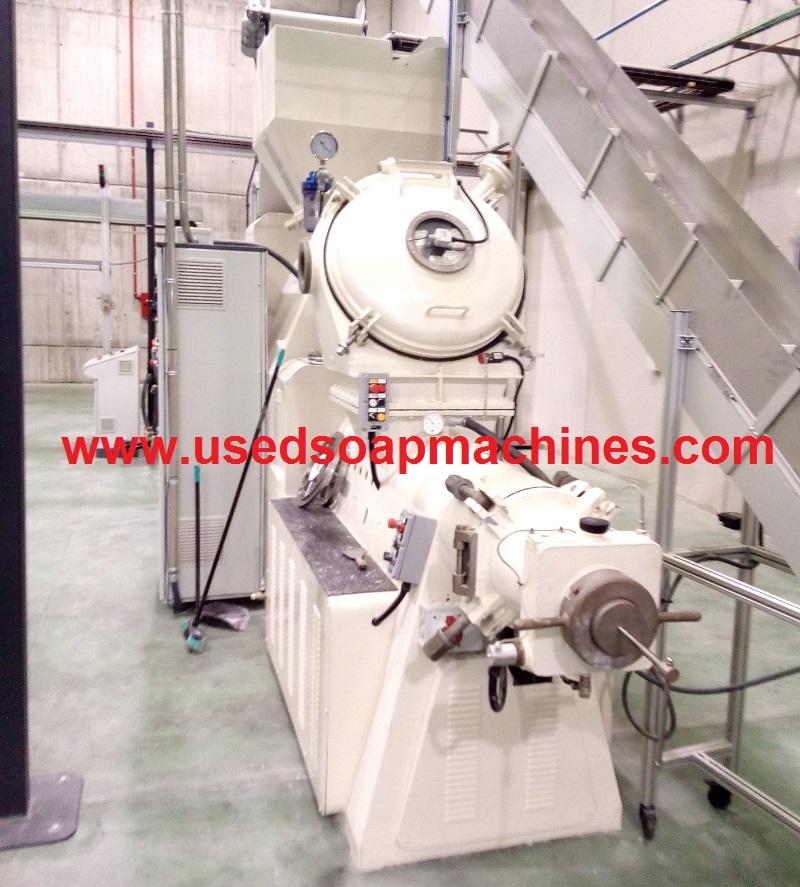

G. MAZZONI DUPLEX VACUUM PLODDER “M-300”
- Capacity: 1,200 Kg/h of extruded soap
- Part in contact with soap made in stainless steel
- First refining stage screw diameter: 300 mm
- Vacuum Chamber with Vacuum Pump
- Second extrusion stage screw diameter: 300 mm
- Installed power: 37 kW

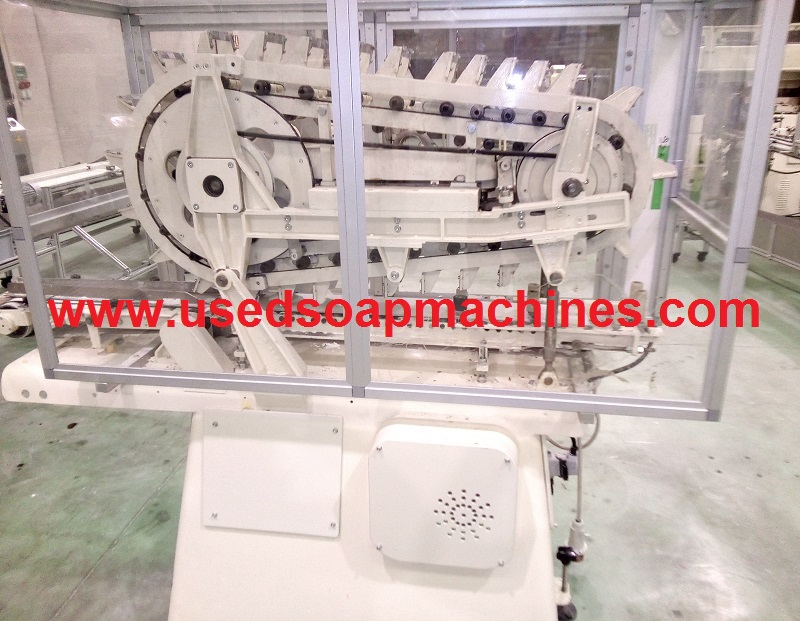

H. MAZZONI CHAIN CUTTER TYPE “TV-A”
- Type: Soap Chain Cutter
- Number of blades: 26
- Maximum Speed: 200 cut per minute
- Motor to help the chain
I. CONNECTING CONVEYOR

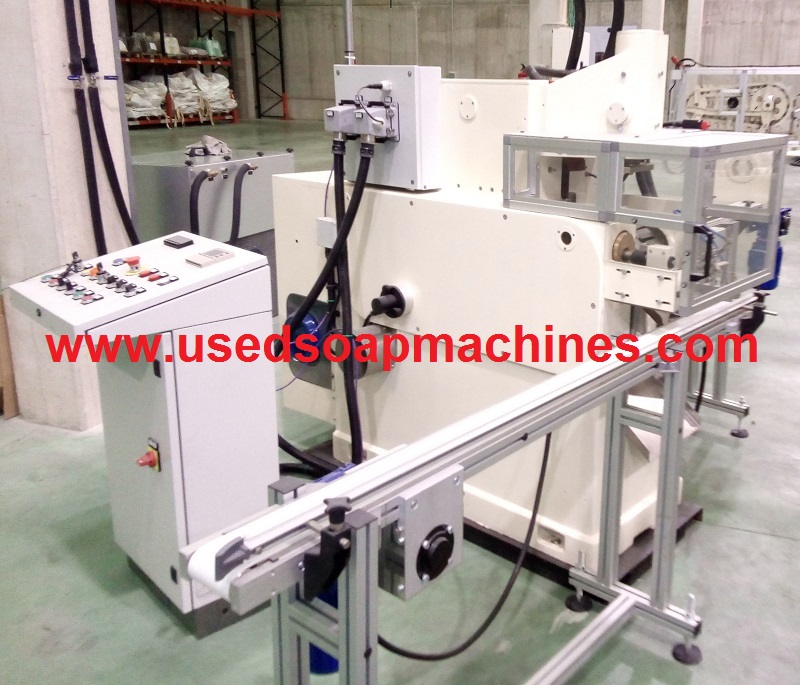

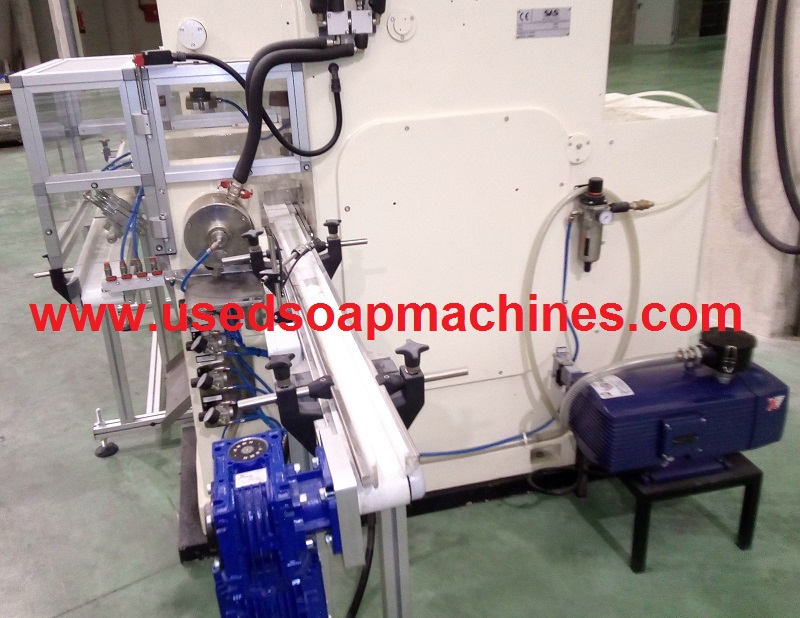

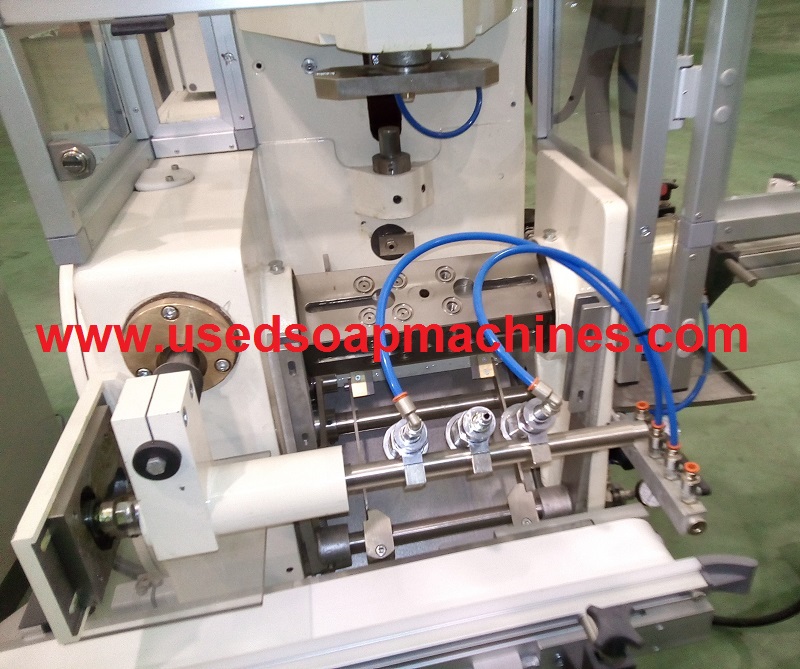

J. SAS SOAP PRESS “SAS - CONDOR“
- Maximum capacity: up to 160 bars per minute
- Installed power: 5 kW
